L2: Vault workload onboarding¶
What it does¶
Registers a workload principal, either a Kubernetes ServiceAccount or a GitLab project, as a Vault identity entity. This creates the auth role and identity entity that use-case templates (L3) bind policies to.
Two workload types are supported:
- Kubernetes / OpenShift ServiceAccount: binds a namespace and service account to a Vault identity
- GitLab project: binds a GitLab project ID and path to a Vault identity
Terraform modules¶
| Workload type | Module |
|---|---|
| Kubernetes | terraform-vault-add-k8s-namespace-access |
| GitLab | terraform-vault-add-gitlab-project-access |
Form fields¶
Common fields¶
| Field | Required | Type | Description |
|---|---|---|---|
| Tenant / Environment | Yes | Entity Picker | Select the tenant target created by L0. |
| Workspace Name | Yes | string |
Unique HCP Terraform workspace name, such as sdi-dev-payments-gitlab. |
| Workload Name | Yes | string |
Short identity name for the workload (the app or pipeline authenticating to Vault). Downstream L3 templates reference this name. |
| Workload Type | Yes | enum |
Kubernetes / OpenShift ServiceAccount or GitLab project. |
Kubernetes-specific fields¶
The following fields appear when you set Workload Type to Kubernetes / OpenShift ServiceAccount.
| Field | Required | Type | Description |
|---|---|---|---|
| Cluster Name | Yes | string |
Must match the cluster_name from the L1 trust onboarding. |
| OCP / K8s Namespace | Yes | string |
The namespace the ServiceAccount runs in. |
| ServiceAccount Name | Yes | string |
Name of the Kubernetes ServiceAccount to bind. |
| Parent Trust Workspace | Yes | Scoped Entity Picker | The L1 cluster trust workspace providing jwt_auth_path and jwt_mount_accessor. Scoped to the selected tenant. |
GitLab-specific fields¶

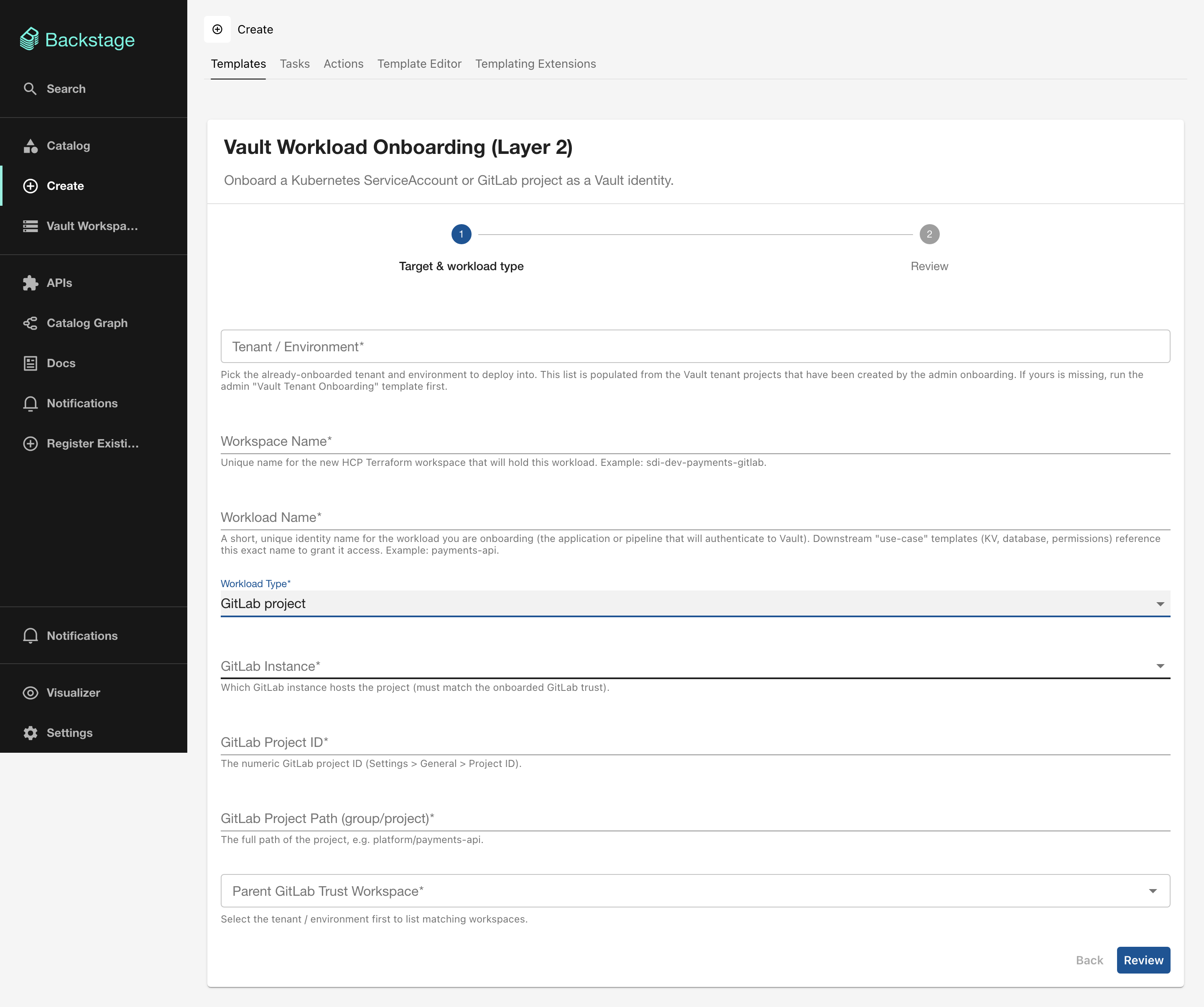

The following fields appear when you set Workload Type to GitLab project.
| Field | Required | Type | Description |
|---|---|---|---|
| GitLab Instance | Yes | enum |
cloud, dedicated-prod, or dedicated-dev. Must match the L1 GitLab trust. |
| GitLab Project ID | Yes | string |
Numeric project ID (Settings > General > Project ID in GitLab). |
| GitLab Project Path | Yes | string |
Full path, such as platform/payments-api. |
| Parent GitLab Trust Workspace | Yes | Scoped Entity Picker | The L1 GitLab trust workspace. Scoped to the selected tenant. |
Output¶
- HCP Terraform run status
- Link to the HCP Terraform Workspace
- Link to the HCP Terraform Run
What to do next¶
With the workload registered, grant it access to secrets using L3: Use-case onboarding.
